16 Channel Ethernet GPIO Module With Analog Inputs
Numato’s 16 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through a network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling the module with a simple set of human-readable commands through Telnet or through easy to use Web interface. For power users, this module can be controlled by writing programs in various programming languages. <h4><strong>Features</strong></h4> <ul> <li>16 TTL (3.3V) compatible GPIOs available</li> <li>All GPIOs can be individually configured as input or output</li> <li>10 Analog input channels (Multiplexed with GPIOs) of 10 Bit resolution</li> <li>Can be controlled by using a simple web interface or Telnet</li> <li>No TCP/IP protocol knowledge required</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Home Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Industrial Automation</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
Stock Status: On Back Order
₹ 6,690.00
SALE
Prodigy EG Series – 16/32 Channel USB/RTU/TCP Modbus GPIO Module
Prodigy EG16/EG32 is a Digital Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32 GPIO(3.3V) multiplexed with 8/14(Max) Analog Inputs that support it. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines, or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. EG16/EG32 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. EG16/EG32 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. EG16/EG32 supports several features such as GPIO Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.
Stock Status: 1 In Stock
Product unavailable
128 Channel USB GPIO Module With Analog Inputs
Numato Lab’s 128 Channel USB GPIO Module helps to connect real-world devices to your computer easily through USB. No USB specific knowledge is required to set up and use this module. Numato Lab’s GPIO devices provide an interface that looks like a Serial Port on your Operating System and thus effectively hiding the complexity of USB. All that you need to operate GPIOs is a standard Serial Terminal Emulator such as HyperTerminal/Teraterm or your favorite programming language such a C/C++, Python, Perl, etc… Besides providing standard General Purpose IOs, this product has multiple Analog Inputs as well. These Analog inputs can be used to read Analog quantities such as temperature, pressure, etc.. with the help of appropriate sensors. <strong>Features</strong> <ul> <li>128 TTL(3.3V) compatible GPIOs available</li> <li>32 Analog input channels (Multiplexed with GPIOs)</li> <li>12 Bit Analog input resolution</li> <li>All GPIOs can be individually configured as input or output.</li> <li>Maximum 20 mA Source/Sink capacity.</li> <li>Can be controlled by using standard serial console applications or custom applications.</li> <li>Onboard controller can be reprogrammed for custom applications</li> </ul> <strong>Applications</strong> <ul> <li>Building automated test fixtures</li> <li>Add more IOs and Analog channels to industrial/modular computers</li> <li>Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards</li> <li>Add IOs to Android-based systems (Smartphones, Tabs and custom devices)</li> </ul> <strong>Supporting operating systems</strong> <ul> <li>Windows XP</li> <li>Windows 7</li> <li>Windows 8/8.1</li> <li>Windows 10</li> <li>Linux</li> <li>Mac OS X</li> <li>Android</li> </ul>
Stock Status: On Back Order
₹ 33,028.00
16 Channel WiFi GPIO Module With Analog Inputs
Numato Lab’s 16 Channel WiFi GPIO Module is a versatile product for controlling electrical and electronic devices remotely from any desktop or mobile device through WiFi. This module comes with low-power, 2.4 GHz, IEEE 802.11-compliant MRF24WG0MA WiFi radio transceiver module. It has an integrated PCB antenna. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This product allows the use of off-the-shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling GPIOs with a simple set of human-readable commands through Telnet or through easy to use Web interface. For power users, this module can be controlled by writing programs in various programming languages <strong>Features</strong> <ul> <li>Microcontroller: Microchip PIC32MX795F512L controller with 512K Flash.</li> <li>Memory: Microchip 25LC1024 serial EEPROM provides 1024 Kbits of storage for both web pages and nonvolatile configuration.</li> <li>WiFi: MRF24WG0MA, IEEE 802.11 b/g WiFi radio transceiver module with serialized unique MAC address.</li> <li>Serial: FT234XD USB to serial UART interface for WiFi Configuration Settings and firmware upload.</li> <li>LED indication for Power and Configuration.</li> <li>Password-protected Web console, Telnet and UART communication interface.</li> <li>Individual DIP switch channels for Firmware upload, WiFi configuration, Factory reset, and Network Reset</li> <li>16 GPIOs and 14 Analog Inputs that support 0V – 3.3V input scale with 10bit resolution (Multiplexed with GPIOs).</li> <li>25mA Maximum IO Source/Sink Current</li> </ul> <strong>Applications</strong> <ul> <li>Home Automation</li> <li>Industrial Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Consumer Electronics</li> <li>Remote Device Management</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
Stock Status: On Back Order
₹ 13,275.00
32 Channel Ethernet GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>32 TTL (3.3V) compatible GPIOs available</li> <li>14 Analog input channels (Multiplexed with GPIOs) with 10-Bit resolution</li> <li>All GPIOs can be individually configured as input or output</li> <li>Can be controlled by using a simple web interface or Telnet</li> <li>No TCP/IP protocol knowledge required</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Home Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Industrial Automation</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
Stock Status: Instock
Quantity: 10 Items Left
₹ 9,346.00
SALE
Prodigy ZGX Series – 16/32/64 Channel USB/RTU/TCP Modbus GPIO Module
<h4><strong>Features</strong></h4> <ul class="lista"> <li>16/32/64 3.3V GPIOs</li> <li>8/14/32 Analog Inputs(Multiplexed with GPIO) with12-Bit resolution</li> <li>USB CDC (Serial) interface that works with Windows, Linux, Mac and more. No USB knowledge required!</li> <li>Compatible with most automation software in the market that supports Modbus RTU/TCP</li> <li>Features such as GPIO Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc.</li> <li>Write your own script or software with the help of a large number of sample code provided in various languages</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Home Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Industrial Automation</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
Stock Status: Out of Stock
₹ Price not quoted
16 Channel USB GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>16 TTL (3.3V) compatible GPIOs available</li> <li>7 Analog input channels (Multiplexed with GPIOs) with 10-Bit Resolution</li> <li>All GPIOs can be individually configured as input or output</li> <li>Can be controlled by using standard serial console applications or custom applications</li> <li>No USB protocol knowledge required, the onboard controller can be reprogrammed for custom applications</li> <li>All IOs available on easy to access screw terminals</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Building automated test fixtures</li> <li>Add more IOs and Analog channels to industrial/modular computers</li> <li>Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards</li> <li>Add IOs to Android-based systems (Smartphones, Tabs and custom devices)</li> </ul>
Stock Status: Instock
Quantity: 5 Items Left
₹ 5,416.00
32 Channel USB GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>32 TTL (3.3V) compatible GPIOs available.</li> <li>Up to seven 10 Bit Analog input channels</li> <li>All GPIOs can be configured as input or output.</li> <li>Control using any standard serial console application</li> <li>As easy as using a serial port, no USB knowledge required</li> <li>All GPIOs can be individually configured as input or output</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Home Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Industrial Automation</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
Stock Status: On Back Order
₹ 6,053.00

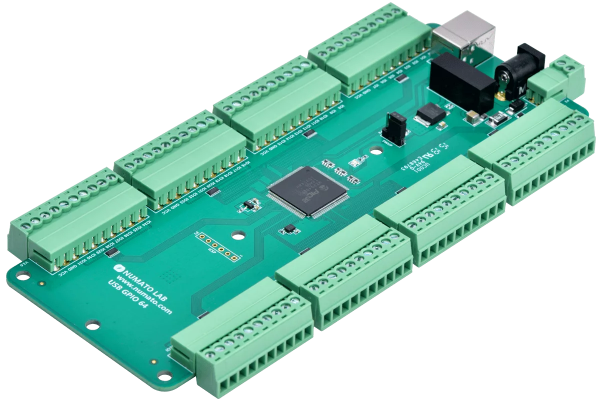

64 Channel USB GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>64 TTL(3.3V) compatible GPIOs available</li> <li>32 Analog input channels (Multiplexed with GPIOs) with 12-Bit resolution</li> <li>All GPIOs can be individually configured as input or output.</li> <li>Maximum 20 mA Source/Sink capacity.</li> <li>Control using any standard serial console application</li> <li>As easy as using a serial port, no USB knowledge required</li> <li>All GPIOs can be individually configured as input or output</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Building automated test fixtures</li> <li>Add more IOs and Analog channels to industrial/modular computers</li> <li>Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards</li> <li>Add IOs to Android-based systems (Smartphones, Tabs and custom devices)</li> </ul>
Stock Status: Instock
Quantity: 5 Items Left
₹ 19,860.00

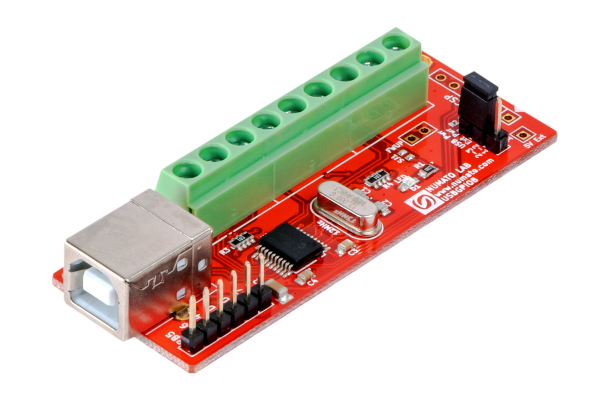

8 Channel USB GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>8 TTL compatible GPIOs available</li> <li>6 Analog input channels (Multiplexed with GPIOs) with 10-Bit Resolution</li> <li>All GPIOs can be individually configured as input or output.</li> <li>Supported by <a href="https://numato.com/product/rhea-device-management-software-for-relay-and-gpio" target="_blank" rel="noopener">Rhea Device Management Software</a></li> <li>readall/writeall support to read/update all GPIOs with a single command</li> <li>Can be controlled using standard serial console applications or custom applications.</li> <li>Onboard controller can be reprogrammed for custom applications.</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Building automated test fixtures</li> <li>Add more IOs and Analog channels to industrial/modular computers</li> <li>Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards</li> <li>Add IOs to Android-based systems (Smartphones, Tabs and custom devices)</li> </ul>
Stock Status: Instock
Quantity: 4 Items Left
₹ 3,398.00
32 Channel WiFi GPIO Module With Analog Inputs
<h4><strong>Features</strong></h4> <ul> <li>32 GPIOs available</li> <li>14 Analog Inputs supports 0V – 3.3V input scale with 10-Bit resolution (Multiplexed with GPIOs).</li> <li>25mA Maximum IO Source/Sink Current.</li> <li>Microcontroller: Microchip PIC32MX795F512L controller with 512K Flash.</li> </ul> <h4><strong>Applications</strong></h4> <ul> <li>Home Automation</li> <li>Industrial Automation</li> <li>Lighting Control</li> <li>Garden Equipment Control</li> <li>Consumer Electronics</li> <li>Remote Device Management</li> <li>Test Fixtures</li> <li>DIY and Hobby</li> </ul>
